LIGHT GUIDING SLATS LS 80

FOR INTELLIGENT USE OF DAYLIGHT

LIGHT GUIDING SLATS LS 80

FOR INTELLIGENT USE OF DAYLIGHT

With the LS 80 from ALUKON, rooms shine in a pleasant light. It enables glare-free enjoyment of sunlight with maximum use of daylight. The light is directed to the ceiling and floods the room.

Summer heat rays are deflected by the slats and in winter it helps to use solar energy and the sunlight level. This is done automatically in the predefined light guiding position of 20°. Continous readjustment is not necessary.

The light guiding slats have good closing action and also allow adequate darkening during the day. At night, the closed slats protect against view from the outside, even if it is brightly lit inside.

ADVANTAGES OF THE LIGHT GUIDING SLATS LS 80

daylight is directed glare-free into the room
high visibility from the inside looking outside
optimum closing and stacking action
for a pleasant indoor climate, even on hot summer days
use of solar heat radiation thanks to special slat contour
Made in Germany

FEATURES

Sun protection

pleasant indoor climate even on hot summer days

Glare protection

Daylight is directed glare-free into the room

Privacy protection

opaque even with illuminated interior

View

high visibility from inside looking outside

Daylight control

more daylight in the room thanks to special slat contour

Darkening

optimum closing action

Save energy

less room cooling and better use of daylight

Efficiency

Slat design makes solar energy usable even in winter

Facade design

Light guiding slats LS 80 available in ten trendy colours

Stability

improved slat stability due to geometry

Ease of use

the systems can be opened and closed independently using automation

Made in Germany

langlebige, hochwertige Materialien

PARTICULAR DETAILS

WITH PERFECT FUNCTION

The ALUKON LS 80 light guiding slats are based on many years of experience in shadowing and are one of the most innovative sun protection products with a great technical know-how right down to the smallest detail. It is moved via filigree, space-saving loop cords and can be used in track and cable guides.

Vertical Tex tape punching

in a flanged design. This is covered in the best possible way by the Tex tape when closed and therefore few light passes through.

External venetian blind with special design

The partially concave slats, which are flanged on both sides, are additionally provided with a piping on the lower edge flanging. On the one hand, this absorbs the closing action and wind noises and, on the other hand, it optimally seals the slats so that they lie one above the other.

Guide nipple in the shape of a ship‘s propeller

Alternately attached to the slats, these ensure the best stacking action.

PERFECT DAYLIGHT INTAKE WITHOUT GLARE

With the LS 80 light guiding slats the sun rays can be „captured“ and deflected into the room in a subdued manner for a feel-good atmosphere.

LIGHT CONTROL AND DESIGN

THANKS TO INNOVATIVE SLAT CONTOUR

The special slat shape is designed as a modern design element in a kind of „headlight principle“. This ensures optimal light control, which is most effective with bright slat colours.

closed slats

Good darkening of the rooms thanks to special closing action.

20° light guiding position

Glare-free slat position with the best possible view to the outside. Tracking is not necessary.

MORNING
SUMMER

MIDDAY
SUMMER

MIDDAY
WINTER

EVENING
SUMMER

SOLAR ALTITUDE
IN THE MORNING IN SUMMER TIME

MORNING
SUMMER

MIDDAY
SUMMER

MIDDAY
WINTER

EVENING
SUMMER

SOLAR ALTITIDE
AT NOON IN SUMMER TIME

MORNING
SUMMER

MIDDAY
SUMMER

MIDDAY
WINTER

EVENING
SUMMER

SOLAR ALTITIDE
AT NOON IN WINTER TIME

MORNING
SUMMER

MIDDAY
SUMMER

MIDDAY
WINTER

EVENING
SUMMER

SOLAR ALTITIDE
IN THE EVENING IN SUMMER TIME

LIGHT CONTROL

MODE OF OPERATION OF THE LS 80

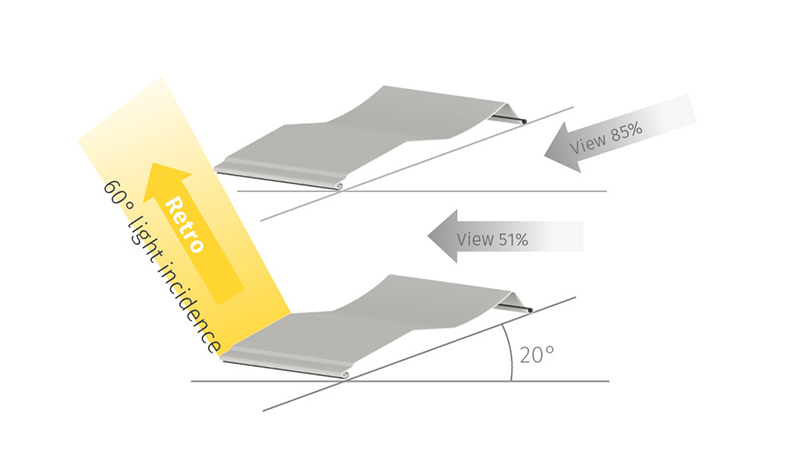

midday in summer

The steep and hot rays of sunlight are reflected back, so the heat stays outside, the room is not unnecessarily heated and the view to the outside is retained. Indirect light also brightens the room without disturbing, dazzling rays of sunlight.

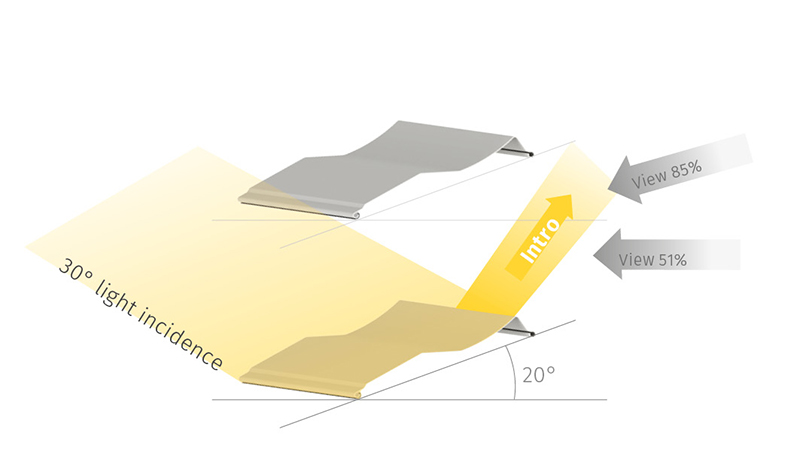

midday in winter

The flat rays of sunlight are reflected completely inwards across the slat contour without glare and illuminate the room in an optimum manner while using the solar radiant heat.

ALUMINIUM SLATS

IN ALL ALUKON BOX SYSTEMS

Whether in the RAFF-E box system, as a facade venetian blind as well as in front-mounted boxes or top-mounted boxes, the ALUKON venetian blind slats are versatile and can be harmoniously integrated into the overall appearance of the facade in terms of colour design. The aluminium
boxes, guide rails and end strips are available in a wide range of colours. Further details can be found in our sales and planning documents for the individual products.
