AK-FLEX WITH BOX 240

ADAPTED TO MODERN WALL STRUCTURES

AK-FLEX WITH BOX 240

FOR A WIDE RANGE OF PRODUCT VARIANTS



The further development of the tried-and-tested AK-FLEX box with a reduced installation depth also offers a technical solution for special wall structures.

The foamed top-mounted box AK-FLEX is specially designed for new buildings or renovations together with the entire window and meets the current requirements for both thermal and sound insulation. You can use the AK-FLEX for all wall structures and installation situations.

Regardless of whether thermal insulation composite system, exterior plaster, clinker or slate facade, the AK-FLEX universal box can always be used. Its flexibility and the possibility to adapt its external dimensions to the building situation makes it particularly suitable for prefabricated houses or requirements for fixed wall thicknesses. The AK-FLEX box can be equipped with various curtains, such as roller shutters, textile sun protection and venetian blinds, as well as integrated insect screens.



ADVANTAGES AK-FLEX WITH BOX 240

  • system component: Windows and roller shutters as one unit
  • available with roller shutters, external venetian blinds or ZipTex curtains
  • excellent heat and sound insulation characteristics
  • wind resistance in box/window system
  • glass guard rail as well as integrated insect protection possible for roller shutters and venetian blind boxes
  • Made in Germany

FEATURES

Sound protection
offers the highest level of sound protection
Facade design
depending on requirements with roller shutter, external venetian blind or ZipTex curtain available
Energy saving
excellent thermal insulation
Insect protection
integrated insect protection possible for venetian blinds and roller shutters
Privacy protection
more privacy in your own home
Sun protection
pleasant indoor climate, even on hot summer days
Anti-burglary protection
an additional barrier for your safety, deterring intruders
Stability
Profiles made of corrosion-resistant aluminium – solid, durable, low-maintenance and recyclable
Weather protection
the connection to the window is already windproof thanks to the snap-in adapter profile
Made in Germany
durable, high-quality materials

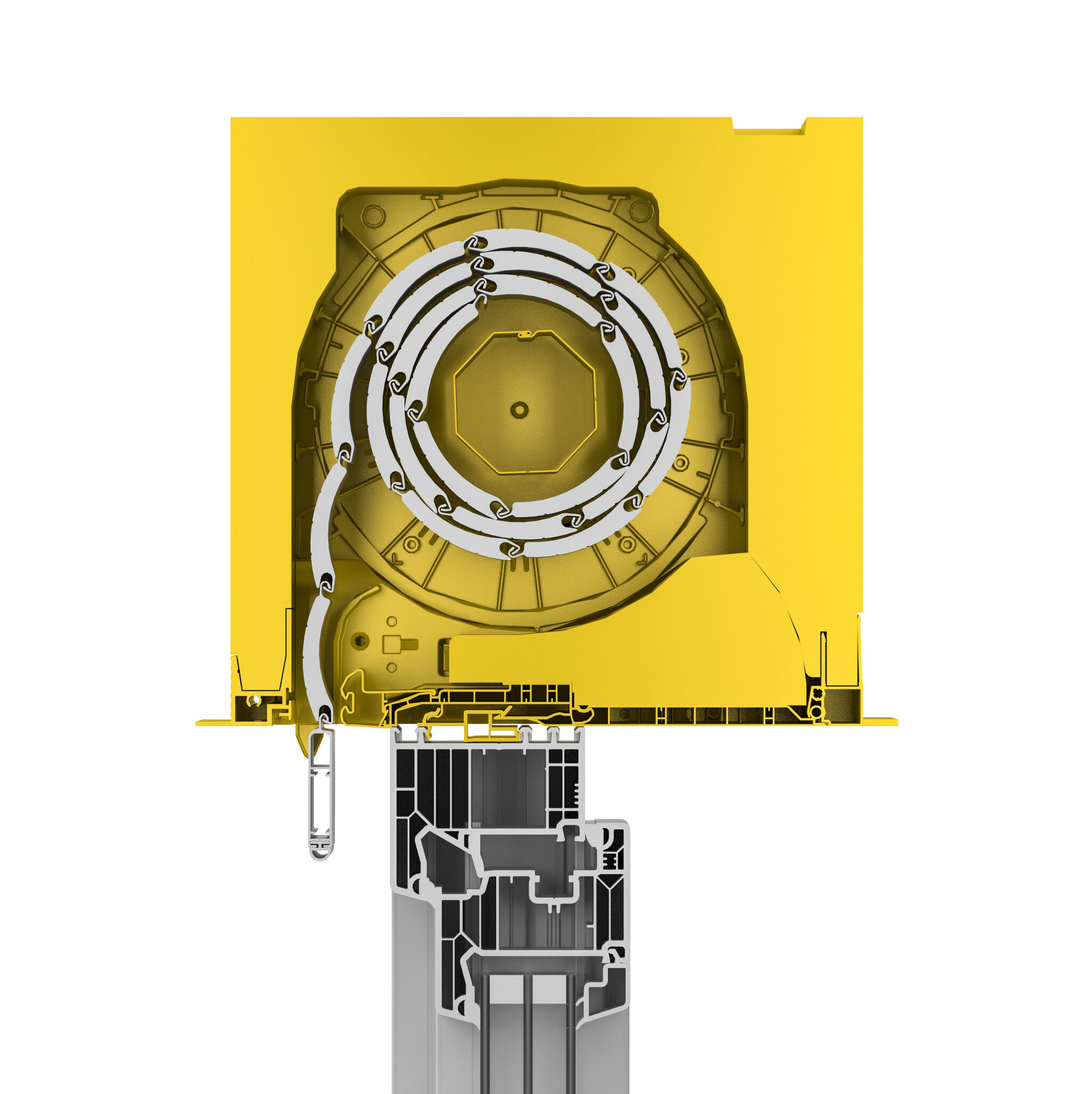

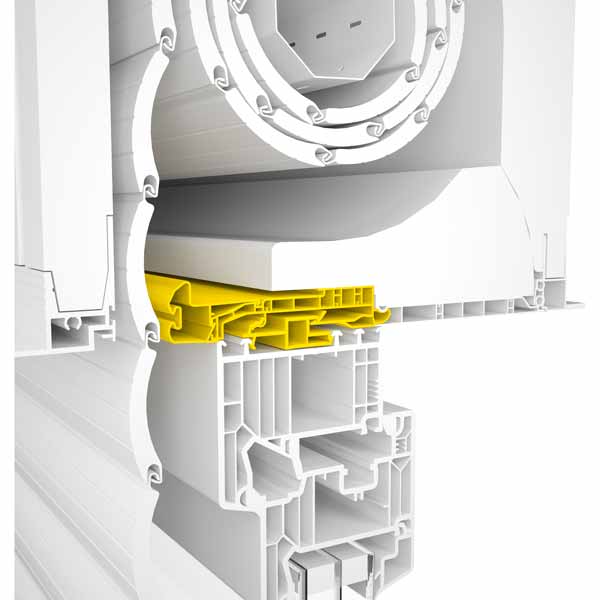

SOPHISTICATED DETAILS

THE MOST IMPORTANT POINTS AT A GLANCE

  • high stability – element widths of up to 500 cm possible

  • 250 box height in basic size: 240

  • with mini and maxi roller shutter curtains, ZipTex textile solar protection as well as venetian blind slats in flat, flanged or Z-shaped design and as light guide slat

  • grooved EPS surface and grooved aluminium/PVC mounting frames for better adhesion to the plaster

  • simple and secure mounting on the window

  • waterproof PVC and aluminium guide rails

  • tested static concept with high stability and simple installation

BOX VARIANTS

  • inspection inside
    or outside

  • optionally with integrated
    insect protection

Roller shutter

  • Internal or external inspection

ZipTex

  • optionally with integrated
    insect protection

Venetian blind

GLASS FALL PROTECTION

CAN BE INTEGRATED INTO AK-FLEX WITH BOX 240

The ALUKON glass fall protection is a modern, discreet solution for floor-to-ceiling windows. It provides unrestricted visibility to the outside and more daylight intake in the rooms.

GLASS FALL PROTECTION

VARIANTS AND DETAIL

EXTERNAL VENETIAN BLIND

ROLLER SHUTTER

Glass guard rail

Planning is carried out directly with the top-mounted box AK-FLEX. The 16 mm laminated glass (according to AbP) is inserted into the waterproof, multi-part guide rail between the window and roller shutter or venetian blind and fastened in a concealed manner
